PXE Installation

Red Hat allows you to install the OS over the network using NFS, FTP or HTTP. If the hardware supports PXE (Pre-eXecution Environment) the NIC card will send out a broadcast request for DHCP information. The DHCP server provides the client with a IP address and other network infomation such as the TFTP server address (which provides the files necessary to start the installation) and the location of the files on the TFTP server. This is possible because of PXELINUX, which is part of the syslinux package.

In order to setup a PXE installation the following must be carried out:

Software Packages (required)

The following software packages are required

Installation Tree

In my examples below i have used the directory /export/kickstart but this could be anything you like.

Basically create the directory and share the directory to the world, then copy the complete fedora/RHEL dvd or cdroms to this directory, once copied you should have something simular to below

total 52
drwxr-xr-x 10 root root  4096 Oct  6 13:38 .
drwxr-xr-x  3 root root  4096 Oct  6 09:45 ..
drwxrwsr-x  4 root root  4096 Mar 15  2006 Fedora
drwxrwsr-x  3 root root  4096 Mar 15  2006 figs
drwxrwsr-x  4 root root  4096 Mar 15  2006 images
drwxrwsr-x  2 root root  4096 Mar 15  2006 isolinux
drwxr-xr-x  2 root root  4096 Oct  6 14:00 ks            (this is where my kickstart files are held)
drwx------  2 root root 16384 Oct  6 09:47 lost+found
drwxrwsr-x  2 root root  4096 Mar 15  2006 repodata
drwxrwsr-x  2 root root  4096 Mar 15  2006 stylesheet-images

DHCP Installation

Once the DHCP package has been installed, a basic configuration file needs to be setup in /etc/dhcpd.conf, again this configuration file can be has advanced as you want it to be.

# DHCP Server Configuration file.
#   see /usr/share/doc/dhcp*/dhcpd.conf.sample
ddns-update-style ad-hoc;

deny unknown-clients;
not authoritative;

option domain-name              "example.com";
option domain-name-servers      ???.???.???.???, ???.???.???.???;
option subnet-mask    ;

allow bootp;
allow booting;

option ip-forwarding    false;  # No IP forwarding
option mask-supplier    false;  # Don't respond to ICMP Mask req

subnet netmask {
  option routers;

group {
  next-server;          # name of your TFTP server
  filename "linux-install/pxelinux.0";        # name of the bootloader program

  host fedora5 {
        hardware ethernet 00:0C:29:D5:B8:A0;

The above file will setup the host fedora5 (note the specific MAC address associated to the host fedora5) and boot from the next-server (tftp server) using the pxelinux.0 boot file, which in turn will look for the pxe configuration boot file.

PXE Boot Configuration Files

The PXE boot configuration basically is setting up the /tftpboot directory to allow clients to download the PXE boot configuration script and allow access to the initial ram disk (initrd.msg) and the linux kernel (vmlinuz).

The tftpboot directory will contain the following directories and files

/tftpboot/linux-install/prelinux.0 This file is the PXE boot file and will be run immediately after the the client has connected to the tftp server.
/tftpboot/linux-install/msgs This directory contains the boot messages/menus displayed when the client boots
/tftpboot/linux-install/pxelinux.cfg This directory contains the PXE boot configuration scripts, normally named C0A80023 (ip address of host in HEX)
/tftpboot/linux-install/RHEL4 This directory is optional and is created when using the system-config-netboot or pxeos commands. It is used to hold kickstart scripts, linux kernels and ram disks for specific installations.

Two commands are used to configure the tftpboot area pxeos and pxeboot

Using the command below will create a directory called RHEL4 and copy the necessary linux kernel and ram disk files (normally located in images/pxeboot directory of the installation tree), we are also stating that we will use NFS to install the OS onto clients

# pxeos -a -i "<description>" -p NFS -D 0 -S <tftp IP addr> -K nfs:<kickstartserver>:/export/kickstart -L /export/kickstart RHEL4

-a Specifies that an OS instance is being added to the PXE configuration
-i Description of the OS instance
-p Specify which protocol to use for the o/s installation (NFS, FTP, HTTP)
-D Specify if client is diskless (0=network, 1=diskless)
-s Provides the name of the NFS, FTP or HTTP server
-L Provides the location of the installation tree (o/s rpms, etc)
-k provide the specific kernel version of the server installation tree for booting
-K provide the location of the kickstart file
os-identifier OS identifier to keep different build seperate

The above command would have copied the linux kernel (vmlinuz) and ram disk (initrd.msg) to the /tftpboot/linux-install/RHEL4 directory and also created a blank kickstart configuration file( i will be using my own kickstart file discussed later). Also the command would have created a pxe boot default file in the /tftpboot/linux-install/pxelinux.cfg directory as below:

default local
timeout 100
prompt 1
display msgs/boot.msg
F1 msgs/boot.msg
F2 msgs/general.msg
F3 msgs/expert.msg
F4 msgs/param.msg
F5 msgs/rescue.msg
F7 msgs/snake.msg

label 0
localboot 1

label 1
  kernel RHEL5/vmlinuz
  append initrd=RHEL5/initrd.img ramdisk_size=5939 ks=nfs:

To setup specific pxe boot configuration files we use a command called pxeboot, this will override the above default boot configuration file

pxeboot -a -K <kickstart server> -O OS identifier <hostname>

-a add a specific host
-K location of kickstart file
-O OS identifier
hostname hostname

The above command will create a file called C0A80028 (IP address in HEX) located in /tftp/linux-install/pxelinux.cfg, which is the specific boot configuration file for that host.

default RHEL5
label RHEL5 kernel RHEL5/vmlinuz append initrd=RHEL5/initrd.img ramdisk_size=5939 ks=nfs:

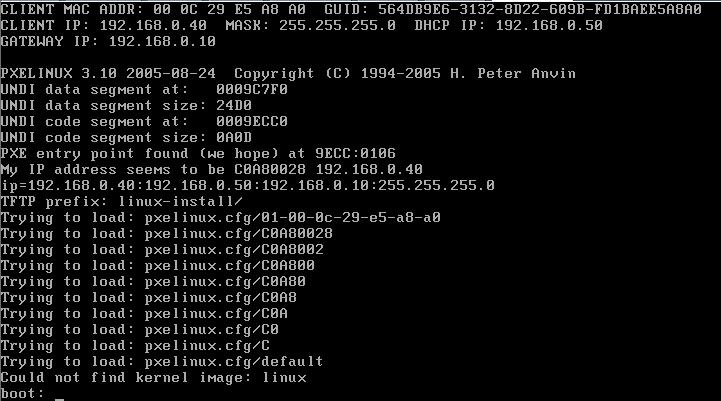

After the client has obtained it's IP address via DHCP it looks for the following configuration files, as you can see the C0A80028 file is called which if you remember was created above.

Kickstart Configuration file

There are many options to a kickstart configuration file, i have supplied a basic one below which was obtain from a website on the internet, adapt to your own tastes.

install         # rather than upgrade
nfs --server= --dir=/export/kickstart  # Location of the install media, http, nfs etc
lang en_US.UTF-8
langsupport --default en_US.UTF-8
keyboard uk
mouse generic3usb --device input/mice
network --device=eth0 --bootproto=static --ip= --netmask= --gateway=???.???.???.??? --nameserver=???.???.???.??? -
-hostname fedoraks # we could specify static IP info too instead
rootpw password    # noencrypted password
firewall --disabled
selinux --disabled
authconfig --enableshadow --enablemd5
timezone Europe/London
bootloader --location=mbr --append="noexec=off hda=noide"
              # Any boot time options you wan to add
              # I specified noide here as I was booting
              # from SAN in this case.
              # do not configure X Windows
zerombr yes
              #Clear the Master Boot Record
clearpart --all --initlabel
              #Partition clearing information
part /boot --fstype ext3 --size=150 --ondisk=hda
part pv.01 --size=1 --grow --ondisk=hda
part pv.02 --size=1 --grow --ondisk=hda
volgroup rootvg pv.01
volgroup satvg pv.02
logvol /    --vgname=rootvg --size=6000 --name=rootvol
logvol swap --vgname=rootvg --size=2000 --name=swapvol
              # In the above partition layout (with LVM) I have
              # used two disks, sda and sdb for different volumes.
              # You don't need to use LVM etc. HDA for IDE etc.
auth  --useshadow  --enablemd5
              #System authorization information
%packages --resolvedeps
              # This is the actual package install section. The
              # resolvedeps option allows you to make mistakes and
              # have anaconda sort it out for you, i.e. resolving
              # package dependencies.
@ Base
@ Development Tools
@ Legacy Software Development
              # base channels
              # individual packages to add
              # individual packages to add
              # And so begins the post-install section.
              # this is currently in a chroot to / on the
              # new file system.
              # Various variables I like to set first to use later
              # I run everything in this, so I can log it
/bin/echo "Welcome to $HOSTNAME Server " > /etc/motd
/bin/echo "Built from kickstart version $VER " >> /etc/motd
/bin/echo " " >> /etc/motd
              # One way of adding to files
cat >> /etc/sysctl.conf << EOF
fs.aio-max-size = 1048576
fs.file-max = 327680
net.core.rmem_max = 262144
net.core.wmem_max = 262144
net.core.rmem_default = 262144
net.core.wmem_default = 262144
net.ipv4.ip_local_port_range = 1024 65000
net.ipv4.ip_forward = 0
kernel.shmmax = 2147483648
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
              # Another way of inputing to files
              # Here doing some system settings
useradd -c "Some lone user" -d /home/luser luser
echo luserpass | passwd --stdin luser
              # Add a user if you like
# Setup hosts file
cat > /etc/hosts << EOF       localhost.localdomain           localhost     install-server.some.domain      install-server     another.machine.some.domain     another
              # Edit the hosts file if you like
wget $SERVER/iptables.$lab -O /etc/sysconfig/iptables
              # Here using the server variable we set at the
              # top of the post-install section to pull some
              # custom files we stored, in this case a firewall.
              # In this case using a variable which could have been
              # pulled from /proc/cmdline to get a specific one for
              # each lab.
/sbin/chkconfig ip6tables off
/sbin/chkconfig isdn off
/sbin/chkconfig sendmail off
/sbin/chkconfig ntpd on
              # Turn some services on and off
) > /tmp/kickstart-install.log 2>&1
              # The aforementioned log.
Boot and Start the Installation

Just boot the server via the network (normally option F12) and if all goes well your client should install from the kickstart server, the basic steps are as follows

Client BIOS (DHCP broadcast)<----------------------------------------> DHCP Server (Network info, tftp server and PXE file name)
Client BIOS (TFTP request for pxelinux.0)<---------------------------> TFTP/PXE Server (supplies the pxelinux.0 file)
Running PXE (pxe request for kernel and Kickstart install)<----------> TFTP/PXE Server (C0A80028 or default file supplies info)
Running Kernel (NFS KICKSTART) <-------------------------------------> NFS Server (supplies the kickstart config file)
Running Anaconda (NFS request for rpms)<-----------------------------> NFS Server (supply RPMS)
Running Anaconda (NFS request post installtion) <--------------------> NFS Server (runs post install scripts)
Running Anaconda (reboot)
